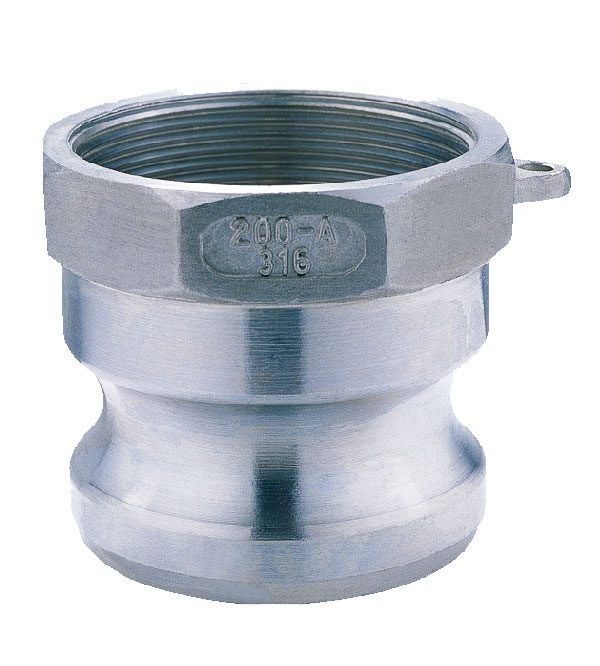

Stainless steel Camlock Fitting Type A

Stainless steel Camlock Fitting Type A

  • Description

Stainless steel Camlock Fitting Type A

Standard: Our Camlock Fitting are made to standard of A-A-59326 (previously called MIL-C-27487) or DIN 2828.

Casting method: Investment casting

Sizes available: From 1/2″ to 6″

Body material:
CF8M casting (SS316)
CF8 casting (SS304)
Other material are available on request

Cam levers: stainless steel cam levers.

Pins, Rings and Safety clips:
We use stainless steel Pins, Rings and Safety clips.
(Note: Safety clips are only available when required by the client, the client have to pay additional if need safety clips)

Sealings:
NBR /EPDM /Viton /PTFE envelop gasket,Other materials are available on request.

Threads:
NPT
BSP ( female thread parallel BSPP, male thread tapered BSPT)

MOQ: 50pcs  (we accept small order to test)

Delivery time: we have enough stock of normal size.

Pls contact with us if you have any questions.
