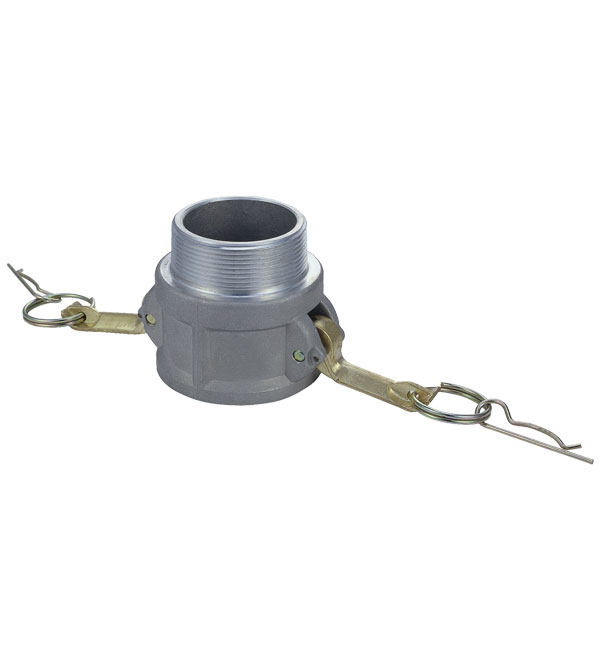

Aluminium Camlock Fitting Type B

  • Description

Description

Aluminium Camlock Fitting Type B

Casting method : Gravity casting
Standard :

A-A-59326 (previously called MIL-C-27487) , DIN 2828, Mil-C-27487, F1122, JIS. Body material :Aluminium A356 or A104
handle material: stainless steel or brass
Sealing:

NBR EPDM VITION PTEE ENVELOP GASKET Other materials are available on request.

Pins, Rings and Safety clips :We use steel plated pins, steel plated rings and Safety clips. (Note: Safety clips are only available when required by the client, the client have to pay additional if need safety clips)
Size:from 1/2″ to 6″
Cam levers :stainless steel cam levers or brass cam levers.
Test pressure: 1.6 MPa and the device is check the leakage of the cam lock coupling product
working temperature: Suggest Below 100°C
Application:oil water gas chemical petroleum
Threads of our racores camlock en aluminio: NPT BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)
Surface finish:T6 heat treatment and acid treatment
Surface test:surface hardness control test
Our strength lies in :Easy to connect
Good seal performance and safe bolt
good price and quality
FOB Shanghai or other
accept small order
