Petroleum Hoses

Description

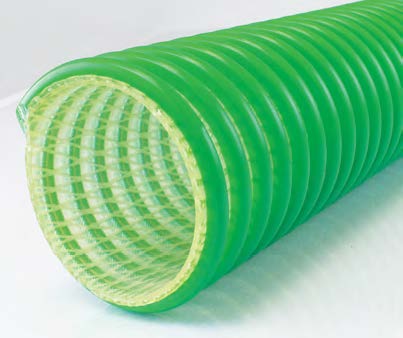

CONSTRUCTION:Polyurethane tube, smooth bore with embedded SΩ ground wire in the hose wall with a sturdy clockwise PVC helix, one braid of high tensile polyester yarn reinforcement.

TEMPERATURE RANGE:-40°F (-40°C) to +140°F to (+60°C)

APPLICATIONS:Used in the delivery of biofuels, gasoline, kerosene and fuel oil.



FEATURES:

•Higher transfer pressures.

•Clear visual flow.

•-40°F cold weather resistance.

•Sub-zero flexibility.

•Easy to drag with “Go-Glide” external clockwise PVC helix.

•SΩ ground wire embedded into the hose wall to help prevent the build-up of static electricity.SΩ wire must be secured to ground to dissipate static electricity.

•Vacuum up to 29” of Hg.

NOTE:Use JASON GREEN banding sleeves only when securing coupling for 3” and 4” ID’s.Discharge pressures and vacuum are temperature dependent.

SΩ = Safety Ohm
